- Kartell Type 11 - 500mm High Radiator (Widths: 300mm - 3000mm)
Kartell

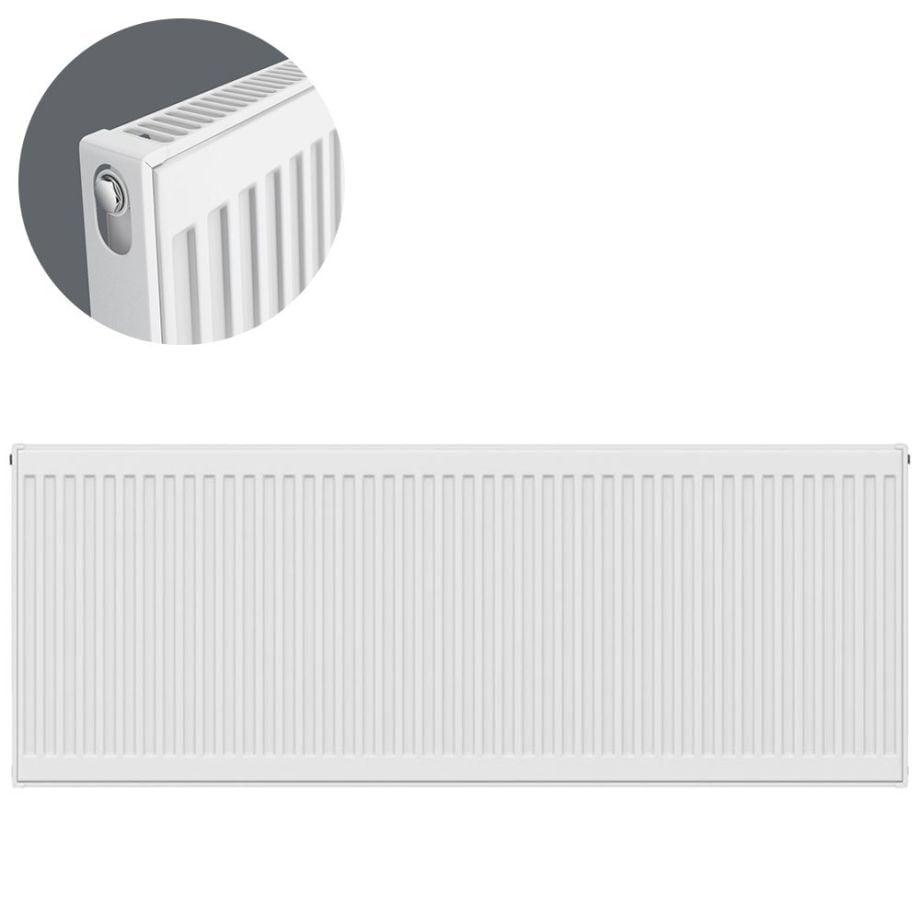

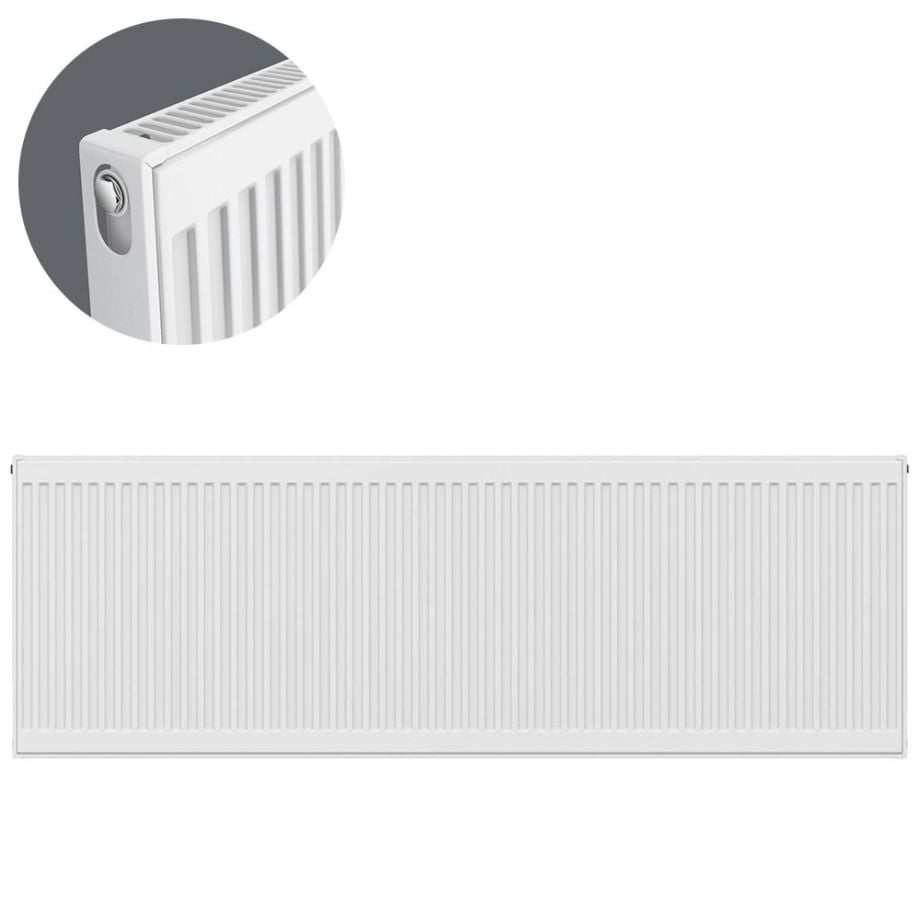

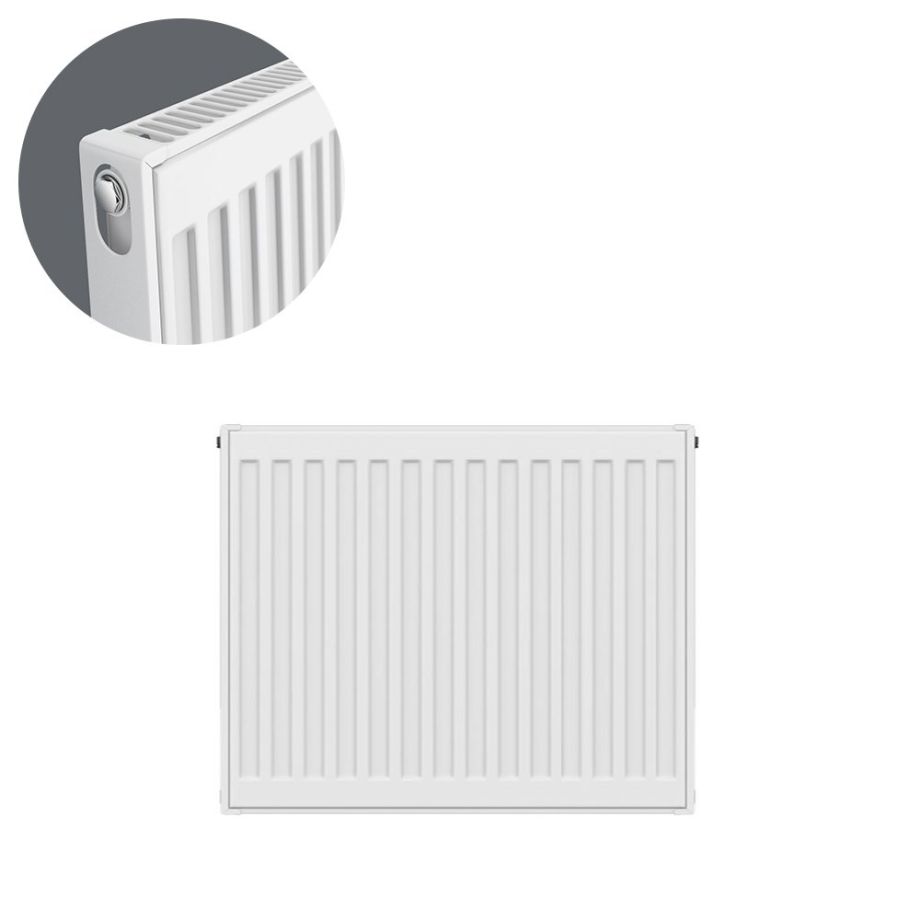

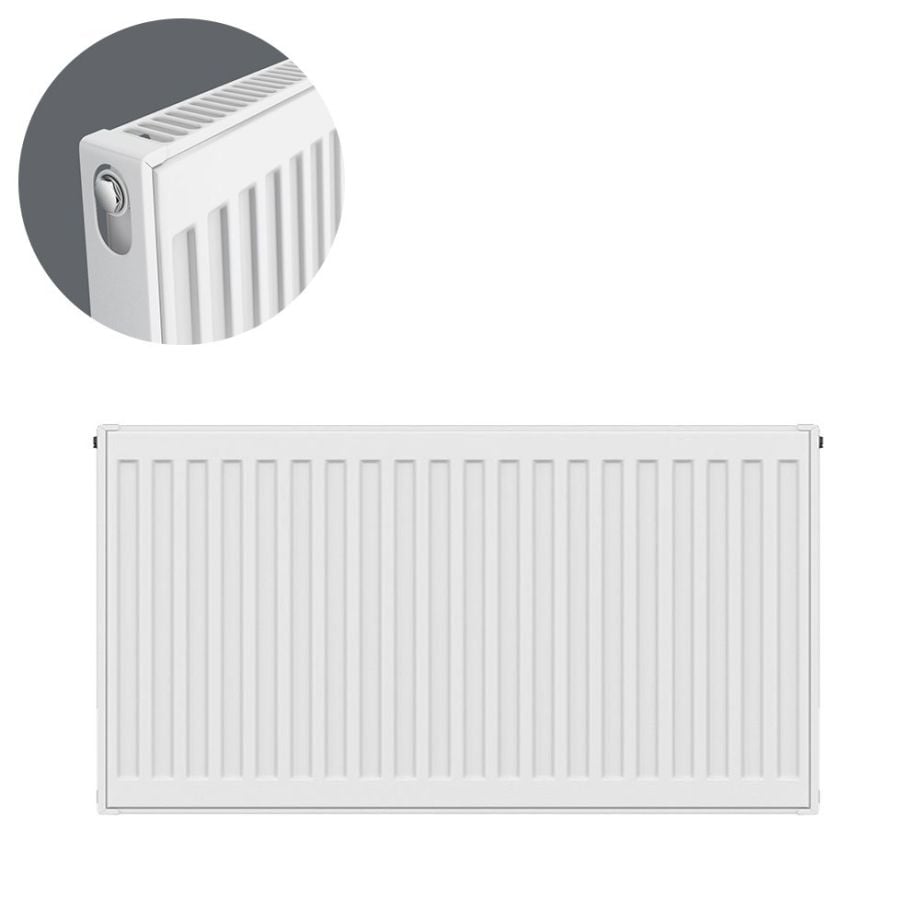

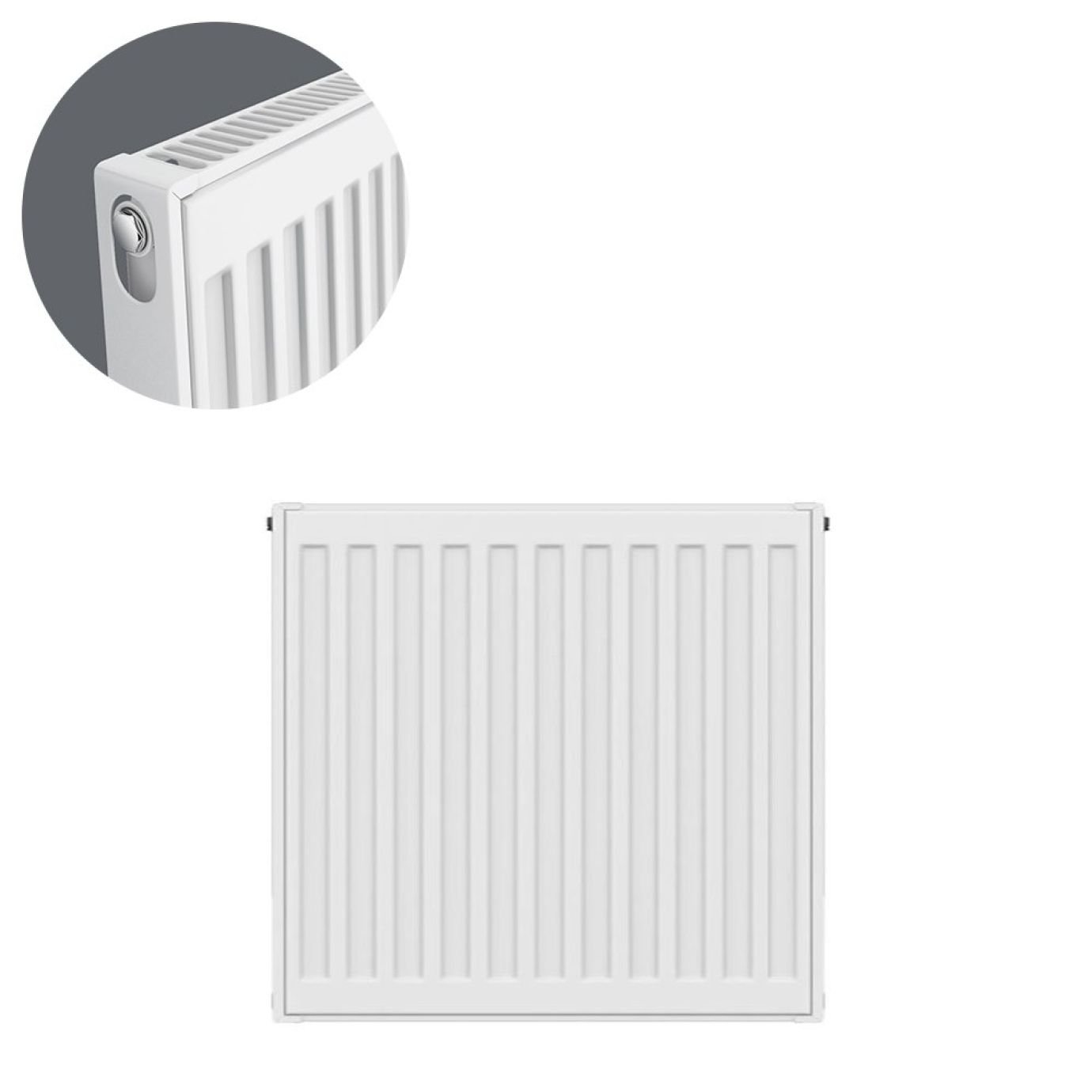

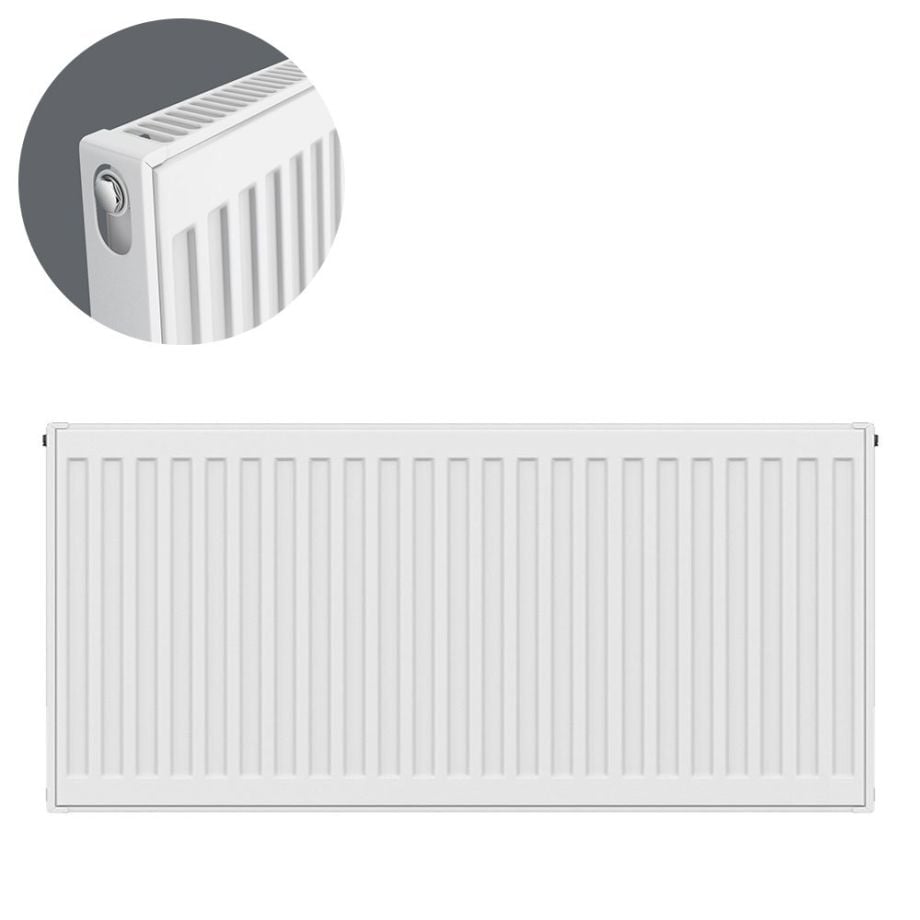

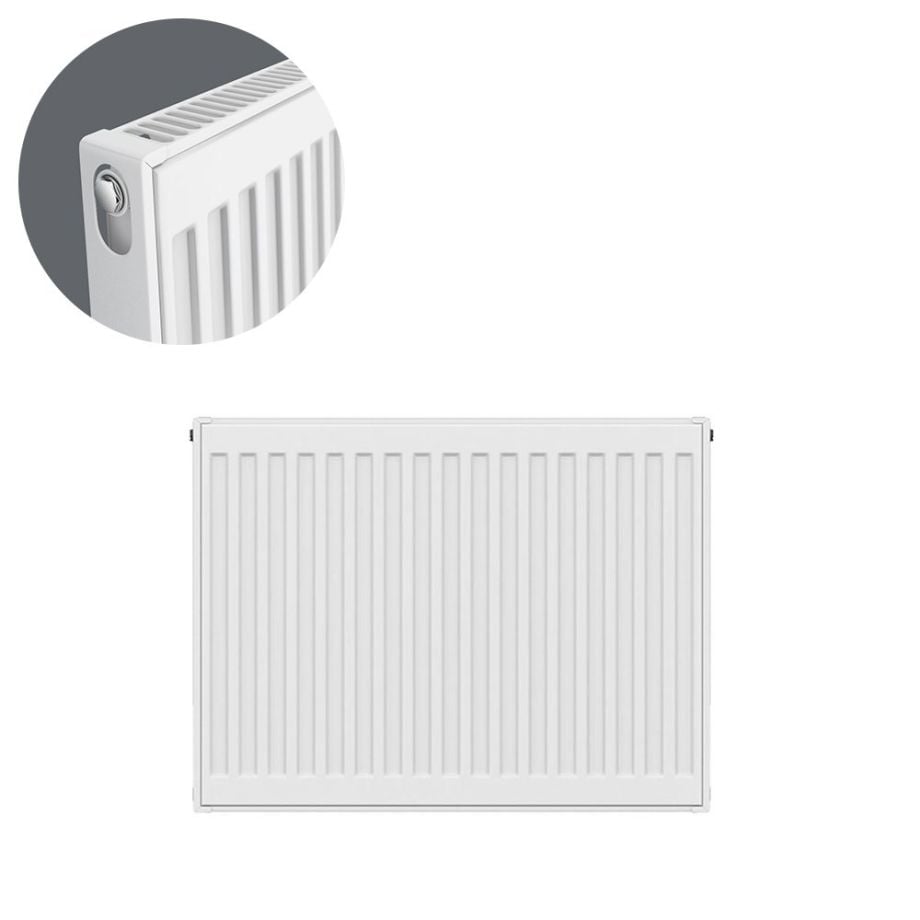

Kartell Type 11 - 500mm High Radiator (Widths: 300mm - 3000mm)
Width:
From £26.78
From £22.32(EX VAT)
The Kartell K-Rad Type 11 500mm High Radiator combines a versatile 500mm radiator height with the slim profile of a single panel radiator. Available in an extensive range of widths from just 300mm through to 3000mm, this K-Rad Kompact range gives you a wide choice of heat outputs for bedrooms, hallways, kitchens, living rooms and other spaces throughout the home.
Also known as a K1 radiator, a Type 11 radiator has one heating panel with one row of convector fins. This single panel single convector construction gives the radiator a slim 56mm depth, making it especially useful where reducing projection from the wall is important. Kartell's Type 11 category and product data use this K1/single-panel configuration consistently.
The current standard range includes 500 x 300mm, 500 x 400mm, 500 x 500mm, 500 x 600mm, 500 x 700mm, 500 x 800mm, 500 x 900mm, 500 x 1000mm, 500 x 1100mm, 500 x 1200mm, 500 x 1300mm, 500 x 1400mm, 500 x 1500mm, 500 x 1600mm, 500 x 1800mm, 500 x 2000mm, 500 x 2200mm, 500 x 2400mm and 500 x 3000mm Type 11 radiators.
At ΔT50, heat outputs range from 245 watts / 835 BTU for the compact 500 x 300mm radiator to 2448 watts / 8351 BTU for the extra-wide 500 x 3000mm model.
Top tip: always calculate the BTU or watt requirement of the room before choosing a radiator. Increasing the width can substantially increase heat output while retaining the same 500mm height and slim Type 11 profile.
Manufactured from mild steel, the Kartell K-Rad Kompact is finished in RAL 9016 gloss white enamel. The 500mm-high Type 11 radiator has a 56mm depth, 445mm vertical connection centre distance, and two wall-to-centre installation positions of 40mm or 55mm.
Kartell supplies the radiator with factory-fitted top grille and side panels plus brackets, bolts, vent and plug. The range is rated for operating pressures up to 10 bar and a maximum operating temperature of 120°C, and Kartell states that its outputs comply with EN 442.
Order online with free delivery across the North East, or visit NXT Hardware & Bathrooms in Hartlepool for help choosing the correct radiator, thermostatic or manual radiator valves, copper or plastic pipe, fittings and other plumbing materials.
Also known as a K1 radiator, a Type 11 radiator has one heating panel with one row of convector fins. This single panel single convector construction gives the radiator a slim 56mm depth, making it especially useful where reducing projection from the wall is important. Kartell's Type 11 category and product data use this K1/single-panel configuration consistently.
The current standard range includes 500 x 300mm, 500 x 400mm, 500 x 500mm, 500 x 600mm, 500 x 700mm, 500 x 800mm, 500 x 900mm, 500 x 1000mm, 500 x 1100mm, 500 x 1200mm, 500 x 1300mm, 500 x 1400mm, 500 x 1500mm, 500 x 1600mm, 500 x 1800mm, 500 x 2000mm, 500 x 2200mm, 500 x 2400mm and 500 x 3000mm Type 11 radiators.
At ΔT50, heat outputs range from 245 watts / 835 BTU for the compact 500 x 300mm radiator to 2448 watts / 8351 BTU for the extra-wide 500 x 3000mm model.
Top tip: always calculate the BTU or watt requirement of the room before choosing a radiator. Increasing the width can substantially increase heat output while retaining the same 500mm height and slim Type 11 profile.
Manufactured from mild steel, the Kartell K-Rad Kompact is finished in RAL 9016 gloss white enamel. The 500mm-high Type 11 radiator has a 56mm depth, 445mm vertical connection centre distance, and two wall-to-centre installation positions of 40mm or 55mm.
Kartell supplies the radiator with factory-fitted top grille and side panels plus brackets, bolts, vent and plug. The range is rated for operating pressures up to 10 bar and a maximum operating temperature of 120°C, and Kartell states that its outputs comply with EN 442.
Order online with free delivery across the North East, or visit NXT Hardware & Bathrooms in Hartlepool for help choosing the correct radiator, thermostatic or manual radiator valves, copper or plastic pipe, fittings and other plumbing materials.
